Multi-Phase Flow Meter

LeEngStar intelligent MFMfor oil well is non-radioactive with high real-time level, as the separation is not required. It provides the key indicator data including oil, gas, water or liquid multiphase instantaneous production, cumulative production and water cut, gas content, gas-liquid (oil) ratio. The technical level and application effect bridge the gaps in this sector in China, and are internationally advanced.

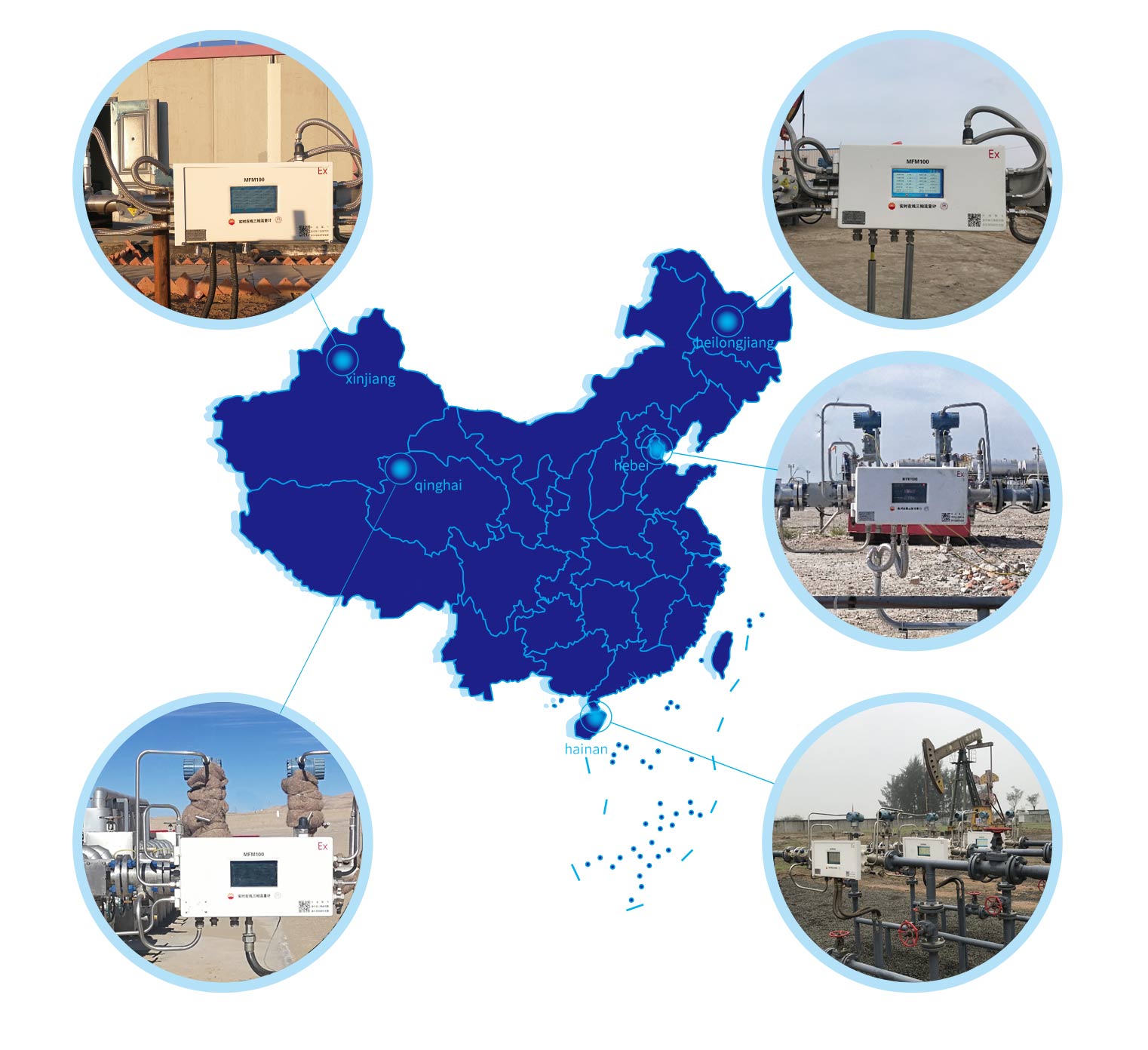

This kind of products is mainly used for metering online the each phase flow in the oil – gas – water multiphase flow of crude oil products  during the upstream oil and gas production, it can supersede the traditional separating metering tank and the complex measurement process for multi-well manifold  through multi-ported valve. The product is suitable for onshore or offshore single well, and gathering Line, and also facilitate effectively the construction of Internet of Things for Oil and Gas Production of intelligent oil fields.

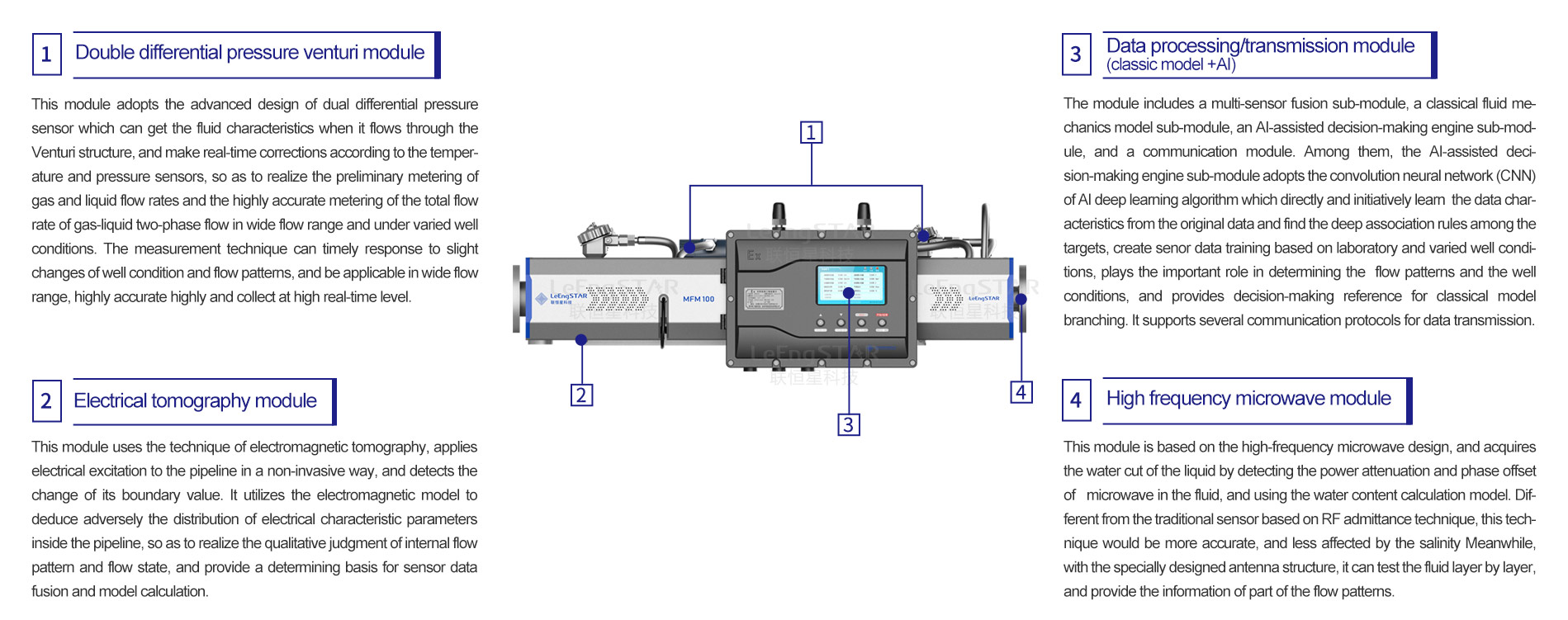

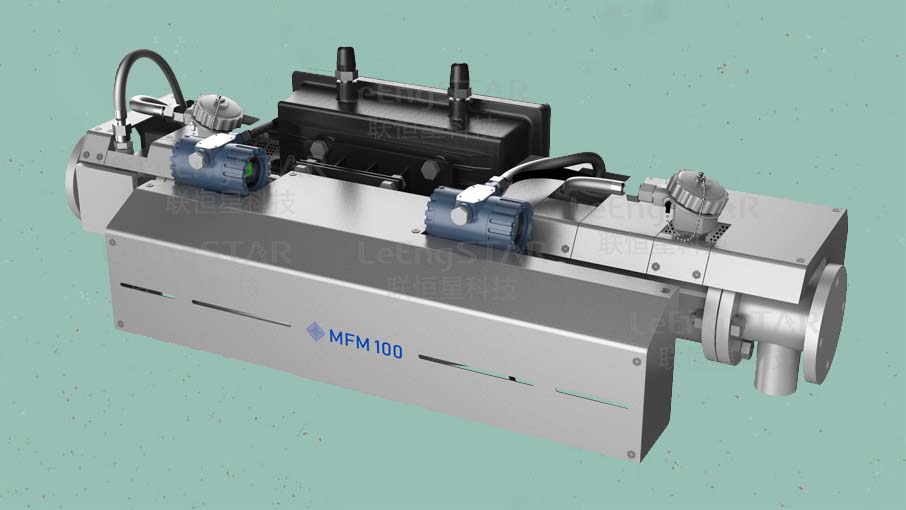

This kind of products integrates several key techniques of multiphase flow real time metering, and adopts modular design, which includes electrical tomography module, real-time online microwave component measurement module, dual differential pressure venturi flow measurement module, and multi-sensor high speed data collection module. With the big data management and analysis system of oil and gas production, the product can not only enable the operator to intuitively know the production rules of oil, gas and water, and obtain real-time and accurate quantitative data for production decisions, but also facilitate to reduce cost, improve efficiency, diagnose the working conditions, streamline the ground engineering, optimize production management for oil and gas fields, and establish health records of the whole life cycle for each well, and realize the upgrading and transformation to intelligent oil and gas fields.

• The non-radioactive technique of multi-sensor data integration.
• It can be easily maintained, without inner components.
• It provides real-time multi-dynamic parameters (flow/water/gas ratio).
• Thermostat design ensures the stable measurement in the four seasons.
• It is equipped with all-weather local digital display, offline work function, data resume function, and intelligent energy-saving technique.
• It supports the historical data query, and automatically creates reports.
• It supports automatic real time warning and the onsite manual event reporting.
• It supports client software and has the SDK to the big data platform of oil field.
• It supersedes the metering station, reduces the manned operation, and streamlines the ground engineering.
• It is applicable to various production methods.
• It supports the new productivity construction for intelligent oil field.
• It helps the decision-making and fine management of production.

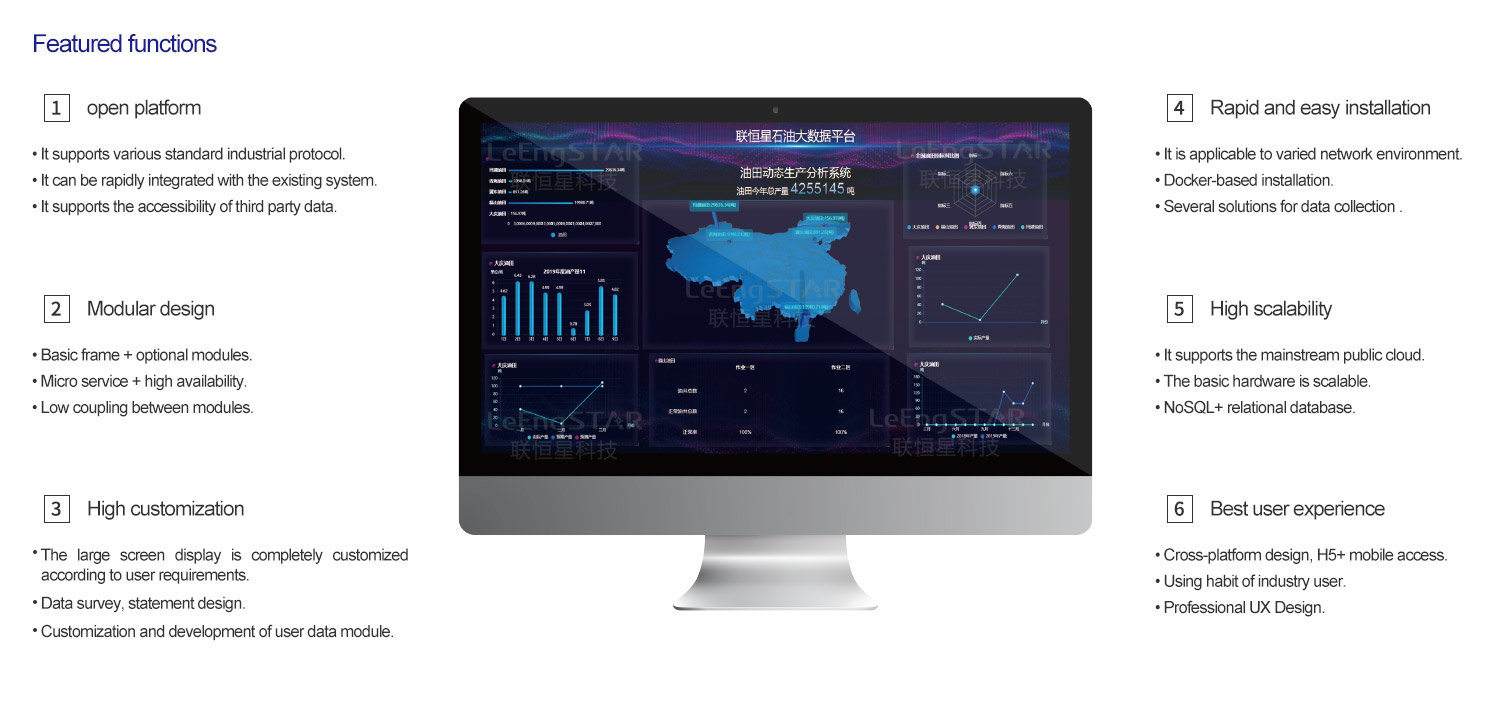

LeEngStar can customize the metering data management platform which is based on the end multiphase flow termina installed on the production end of oil field and oil well.

• Data monitoring and early warning: it supports the display, monitoring, abnormal event and management of metering data.
• Data query and analysis: it supports historical data query, trend rendering, data analysis and statement customization.
• Device management: it monitors the status of on-site equipment, as well as manages, diagnoses and maintains the devices.
• System management: it supports the management on data, users, authority and functions.

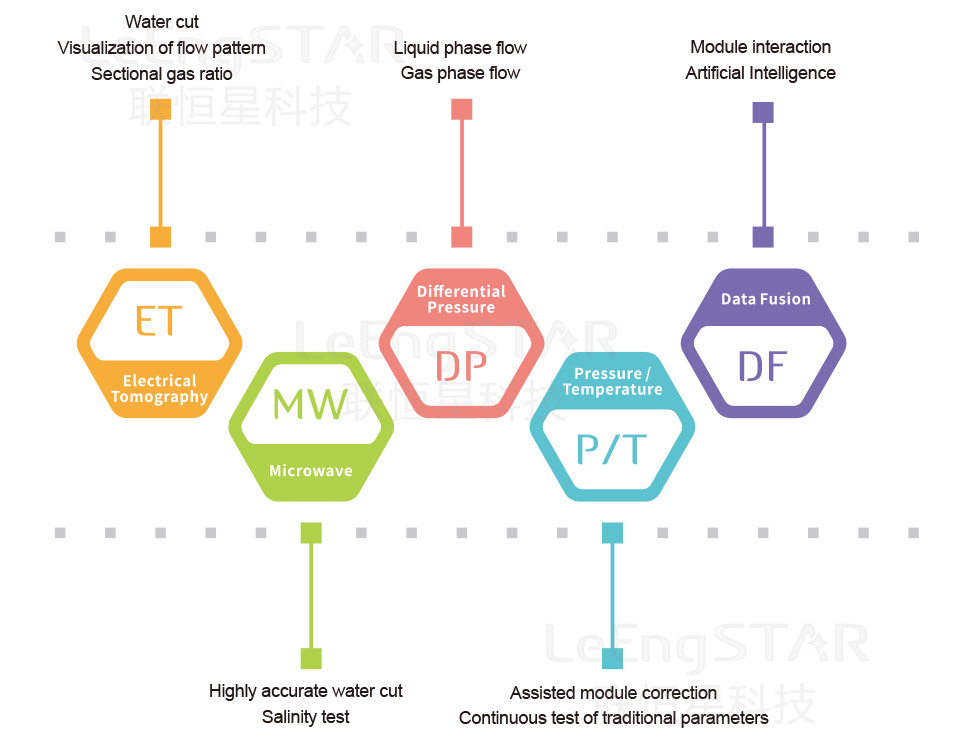

LeEngStar’s self-developed intelligent multiphase flow measurement technique for oil well has been regarded as one of the “five key techniques determining the future success of the oil and gas industry” by international energy giants, which includes electrical tomography, high frequency microwave measurement, double differential pressure venturi flow measurement, and multi-sensor high speed data collection and fusion.
